S&S 11-0409 1 7/8 in. Super E Carb Kit "E" for '91-'03 XL
- S&S Cycle 1 7/8 in. Super E Carb Kit - 11-0409
- Harley-DavidsonSportster - XL 883R • 2002-2003Sportster - XLH 1200 • 1991-2003Sportster - XLH 883 • 1991-2003Sportster Custom - XL 883C 1999-2003Sportster Deluxe - XLH 883 1991-1995Sportster Hugger - XLH 883 1991-2003Sportster Sport - XL 1200S 1996-2003
-
- Designed exclusively for Harley-Davidson Big Twin and Sportster engines
- Butterfly-type carbs with a fully adjustable idle mixture screw and a changeable mid-range and high speed jet
- Fully adjustable accelerator pump and a variable enrichment/fast idle device for improved throttle response, engine starting and warm-ups
- Super E has a 1 7/8" (47.6mm) throat at the butterfly and a 1 9/16" (39.6mm) venturi and is recommended for use on any displacement Big Twin or Sportster
- If you are not sure which carburetor to use, we suggest the 1 7/8" Super E

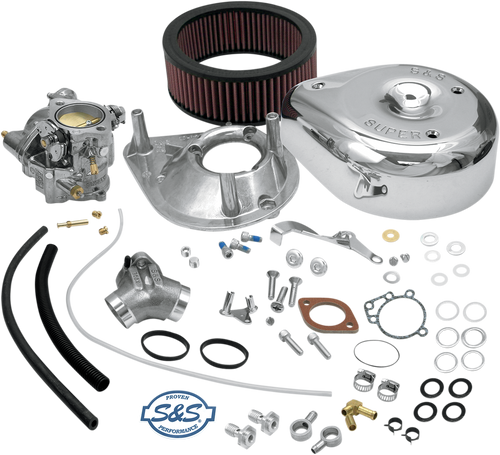

- Each complete carb kit includes: one S&S Super E or Super G gas carburetor, one S&S teardrop air cleaner assembly, one manifold, mounting hardware, fuel line, clamps, overflow line, one extra intermediate jet, two main jets, VOES tubing (when applicable), and installation and jetting instructions
NOTE:- S&S Super E and G carburetors require the use of a two-cable, pull open-pull closed throttle assembly. If your bike is not equipped with one, a two-cable system must be purchased separately.
Included Items:
- (1) Carburetor
- (1) Air filter
- (1) Air cleaner cover
- (1) Breather hose
- (1) Idle lever
- (2) Breather fitting
- (2) Vent fitting
- (4) Hose clamp
- (11) Shims
- (5) Washers
- (2) Plugs
- (1) Intake manifold
- (3) Hoses
- (1) Mounting plate
- (2) Manifold o rings
- (1) Throttle guide
- (1) Insulator block
- (1) Gasket
- (1) O ring
- (2) 3/8"-16 x 1" socket head bolts
- (2) 5/16"-24 1/2" allen head bolts
- (3) 1/4"-20 x 3/4" button head bolts
- (2) #10-24 x 1/4" button head bolts
- (3) 1/4"-20 x 1/4" socket head bolts
Included Items:
(1) Carburetor assembly
(1) Air filter
(1) Air filter cover
(1) Breather hose
(1) Idler lever
(2) Breather fittings
(2) Vent fittings
(4) Hose clamps
(11) Shims
(5) Washers
(2) Plugs
(1) Intake manifold
(3) Hoses
(1) Mounting plate
(2) Manifold O-Rings
(1) Throttle guide
(1) Insulator block
(1) Back plate gasket
(1) O-Ring
(2) 3/8"-16 x 1" Socket cap bolts
(2) 5/16"-24 x 1/2" Allen head bolts
(3) 1/4"-20 x 3/4" Button head bolts
(3) #10-24 x 1/4" Slotted head bolts
(3) 1/4"-20 x 1/4" Socket cap bolts
Instructions
The Air Resources Board (ARB) does not permit the use of aftermarket emission-related parts that alter the air/fuel ratio of an emission-controlled vehicle. Due to these legal restrictions this part cannot be shipped to California.
SpecificationsMfg #: 11-0409 Part #: H170537 Type Carburetor - Butterfly Units Kit Weight 7.15 lbs Alternate/OEM Part Number(s):DS0409
