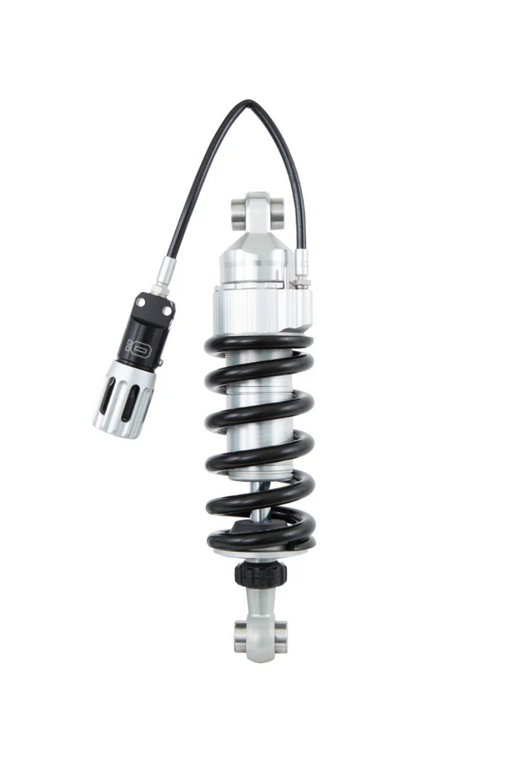

Ohlins HD 516 STX 46 13.5" Performance Rear Shock Low Rider ST M8
- STX single-tube design
- Monotube shock with internal reservoir
- High-pressure nitrogen gas-charged
- 46 mm piston diameter
- Adjustable rebound damping
- Hose-mounted hydraulic preload adjuster
- Multiple spring rates available to accommodate a wide range of riders
- Top-level comfort, rideability, and performance
- Hard-anodized precision CNC-machined components
- Low-friction shaft and sealhead design
- Fully serviceable and repairable
| Mounting Position | Rear |
| Riding Style | Street |
| Extended Length | 13.445" |
| Linear Spring Rate | 115 n/m |
| Model | STX Performance |
| Maximum Rider Weight | 250.00 lb |
| Units | Each |
| Material | Hard Anodized Machined Aluminum |
| Product Name | Shock |
Öhlins STX 46 Custom & Heritage Shock Absorber HD 516 (black spring)
Part number
HD 516
Type Code
S46DR1S
S
Single tube
46
Piston diameter: 46 mm
D
Monotube high pressure gas type of shock absorber with internal reservoir in the main body.
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
S
Hose mounted hydraulic spring preload adjuster.
Technical data
| Rate N/mm: | 115 N/mm |
|---|---|
| Mounted spring: | 21102-41 |
Fits for vehicles
-
Harley-Davidson El Diablo (2022)
- ABE (Germany)
-
Harley-Davidson Softail Heritage Classic (2018 – 2023)
- ABE (Germany)
-
Harley-Davidson Softail Heritage Classic 114 (2018 – 2022)
- ABE (Germany)
-
Harley-Davidson Softail Low Rider S (2020 – 2023)
- ABE (Germany)
-
Harley-Davidson Softail Low Rider ST (2022 – 2023)
