Ohlins FKC 101 25mm Fork Cartridge Kit Harley Touring Glide 99-13

Ohlins FKC 101 25mm Fork Cartridge Kit Harley Touring Glide 99-13

$819.00
(No reviews yet)
Width:
12.00 (in)
Height:
12.00 (in)
Depth:
12.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

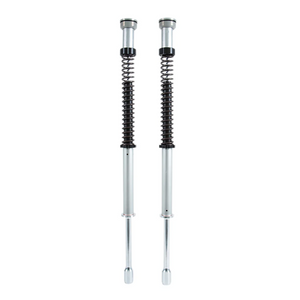

Ohlins FKC 101 25mm Fork Cartridge Kit Harley Touring Glide 99-13



The Öhlins FKC Cartridge Kit introduces Öhlins advanced suspension technology to the front forks of the popular line of Harley Davidson FLH/FLT Touring Baggers. Built on the race proven Öhlins NIX technology, the front fork cartridge damping system vastly improves performance, comfort and vehicle control for the Harley-Davidson front forks.

To maximize the damping performance available in confines of a fork leg, compression and rebound damping are separated between the legs. Also, we did away with the hassle of external adjusters. Just install and enjoy! Of course, optional spring rates are available for individual rider weights, preferences and use of the bike.

The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

Each fork leg features an 8-mm steel shaft, an aluminum damper tube, and 25-mm pistons, greatly reducing the dreaded brake dive. To maximize damping performance within the confines of each fork leg, compression and rebound damping are separated between the two legs.

Optional spring rates are available to accommodate individual rider weights, usage, and preferences. Whatever your needs are, you'll be amazed by how much the FKC 100 cartridge kit transforms your riding experience.





Features

Öhlins NIX technology
25-mm pistons
Aluminum damping tubes
Optional spring rates
Improved feel, control, and comfort
Easy to install

Installation Tools

For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the Öhlins online shop.

  • Stopper plate 8/10/12, part no. 02810-03
  • Tool, pull up M8, part no. 01765-08

Note

Öhlins does not offer technical support to end users. Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop. Authorized Öhlins dealers and Service Centers can be found HERE.

Fits the following vehicles

  • Harley-Davidson Electra Glide Classic FI FLHTCI (FL1), 1999 – 2006

  • Harley-Davidson Electra Glide Classic FLHTC (FL1), 1999 – 2006

  • Harley-Davidson Electra Glide Classic FLHTC (FL2), 2007 – 2013

  • Harley-Davidson Electra Glide FLHT (FL1), 1999 – 2006

  • Harley-Davidson Electra Glide FLHT (FL2), 2007 – 2013

  • Harley-Davidson Electra Glide FLHT (FLT), 1997 – 1999

  • Harley-Davidson Road Glide Custom FLTRX (FL2), 2011 – 2013

  • Harley-Davidson Road Glide FLTR (FL2), 2007 – 2013

  • Harley-Davidson Road Glide FLTR / FLTRI (FL1), 1999 – 2006

  • Harley-Davidson Road Glide Ultra FLTRU (FL2), 2011 – 2013

  • Harley-Davidson Road King Classic FLHRC (FL1), 1999 – 2006

  • Harley-Davidson Road King Classic FLHRC (FL2), 2007 – 2013

  • Harley-Davidson Road King Classic FLHRC (FLT), 1997 – 1999

  • Harley-Davidson Street Glide FLHX (FL1), 2006

  • Harley-Davidson Street Glide FLHX (FL2), 2007 – 2013

  • Harley-Davidson Ultra Glide Classic FI FLHTCUI (FL1), 1999 – 2006
