Legend 1310-2377 REVO ATS - UTV Suspension System REVO ATS Adjustable Air-Assisted Coil Suspension
Features
Legend’s patented design features an independently adjustable (front-to-rear) air-assisted coil suspension for hard-working utility UTV's
Industry-exclusive, integrated helper air springs, offer a wide range of adjustability to improve ground clearance, chassis leveling, and reduce bottoming under heavy loads
Designed to optimize ride quality and maintain the factory ride height of UTV's regardless of cargo, accessory, or attachment weights
Custom coil spring rates improve ride quality when UTV is in an unloaded state
Engineered to allow UTV's to be loaded to the OE manufacturer's GVWR without jeopardizing stability, safety, or comfort
Aramid fiber-impregnated air springs provide high puncture resistance and unmatched durability
Features heavy-duty 46 mm billet aluminum dampers with 16 mm hard chrome shafts for exceptional strength
Easy access knob allows tool-free rebound adjustment for precise, fast, and repeatable adjustments for fine-tuning ride quality and performance across the entire damping profile
Type III hard coat anodized for a long-lasting, durable finish
Spherical bearings in mounting points eliminate suspension bind throughout the range of suspension travel
Air pressure adjustments are easily made via a one-touch, wireless remote control and/or a Bluetooth mobile app

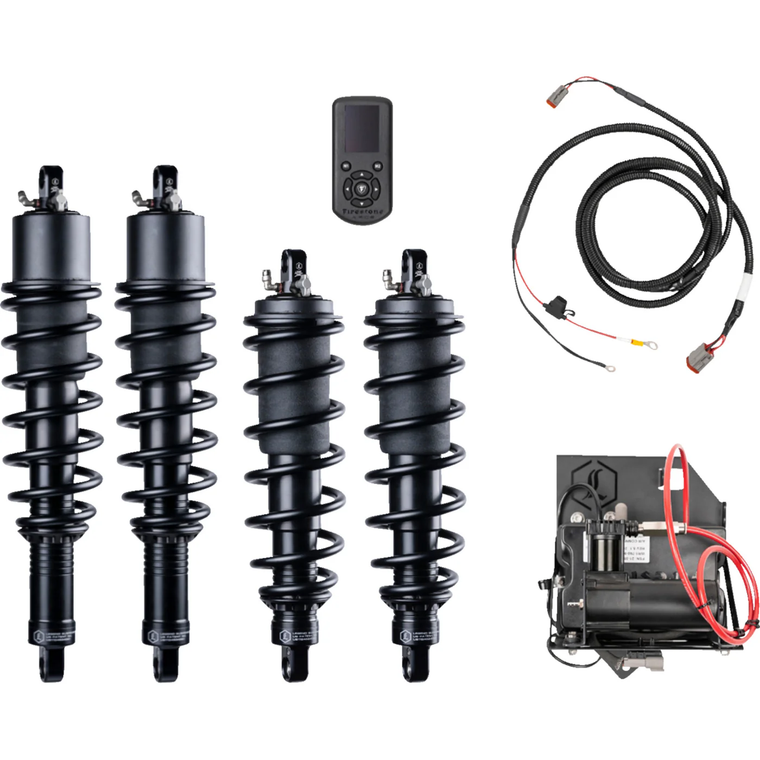

Kit includes four shock assemblies, pre-mounted compressor assembly, remote control, wire harness, airline, and air fittings for easy installation
Assembled in Sturgis, SD U.S.A
Compatible with stock A-arms, not to be used with or as a lift kit.
Specs
Extended Length 19.8" Front / 21.2" Rear
Adjustment Type Adjustable Air Spring
Color/Finish Anodized
Riding Style UTV
Damping Method Deflective Disc
Mounting Position Front
Material Hard Anodized Machined Aluminum
Units Kit
Mounting Position Rear
Product Name Suspension Kit
Type Coilover Air
Color/Finish Black
2021-2024 Can-Am Defender XT 1000 HD10 4x4
2021-2024 Can-Am Defender 1000 HD10 DPS 4x4
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
