Legend 1310-2375 REVO ATS - UTV Suspension System REVO ATS Adjustable Air-Assisted Coil Suspension System
Features
Legend’s patented design features an independently adjustable (front-to-rear) air-assisted coil suspension for hard-working utility UTV's
Industry-exclusive, integrated helper air springs, offer a wide range of adjustability to improve ground clearance, chassis leveling, and reduce bottoming under heavy loads
Designed to optimize ride quality and maintain the factory ride height of UTV's regardless of cargo, accessory, or attachment weights
Custom coil spring rates improve ride quality when UTV is in an unloaded state
Engineered to allow UTV's to be loaded to the OE manufacturer's GVWR without jeopardizing stability, safety, or comfort
Aramid fiber-impregnated air springs provide high puncture resistance and unmatched durability
Features heavy-duty 46 mm billet aluminum dampers with 16 mm hard chrome shafts for exceptional strength
Easy access knob allows tool-free rebound adjustment for precise, fast, and repeatable adjustments for fine-tuning ride quality and performance across the entire damping profile
Type III hard coat anodized for a long-lasting, durable finish
Spherical bearings in mounting points eliminate suspension bind throughout the range of suspension travel
Air pressure adjustments are easily made via a one-touch, wireless remote control and/or a Bluetooth mobile app

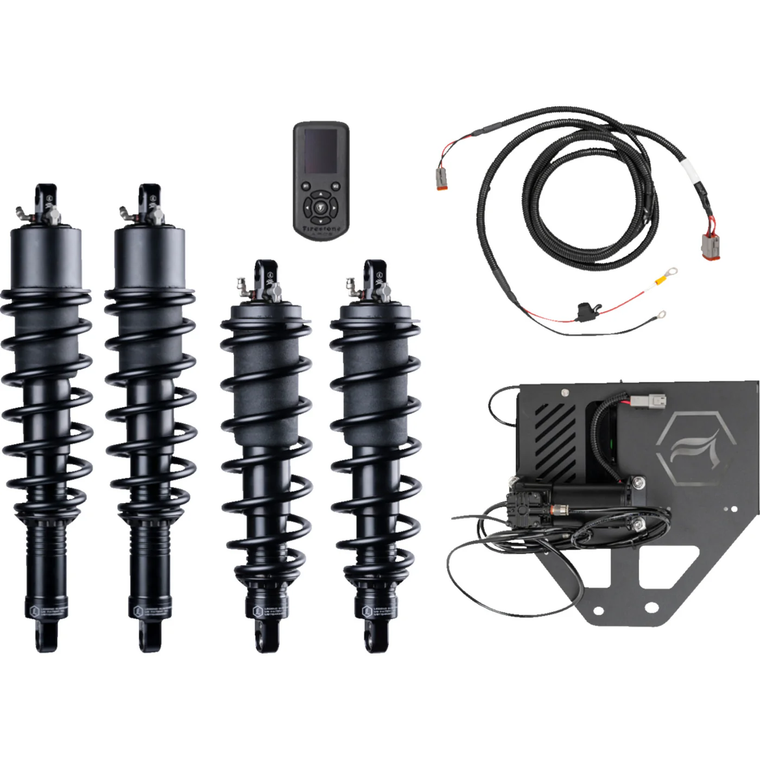

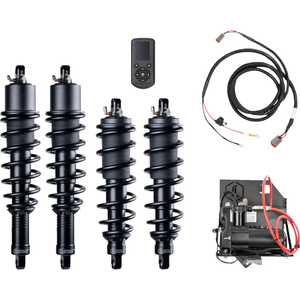

Kit includes four shock assemblies, pre-mounted compressor assembly, remote control, wire harness, airline, and air fittings for easy installation
Assembled in Sturgis, SD U.S.A
Compatible with stock A-arms, not to be used with or as a lift kit.
Specs
Damping Method Deflective Disc
Mounting Position Front
Mounting Position Rear
Product Name Suspension Kit
Type Coilover Air
Color/Finish Black
Extended Length 19.0" Front / 23.0" Rear
Riding Style UTV
Units Kit
Adjustment Type Adjustable Air Spring
Color/Finish Anodized
Material Hard Anodized Machined Aluminum
2020-2024 Polaris Ranger Crew XP 1000 EPS Texas Edition 4x4
2019-2022 Polaris Ranger XP 1000 EPS High Lifter Edition 4x4
2020-2022 Polaris Ranger XP 1000 Northstar Edition Premium 4x4
2020-2021 Polaris Ranger XP 1000 Texas Edition 4x4
2019-2020 Polaris Ranger XP 1000 EPS HVAC Northstar Edition 4x4
2020-2022 Polaris Ranger XP 1000 Northstar Edition Ultimate 4x4
2019-2024 Polaris Ranger Crew XP 1000 EPS Premium 4x4
2020-2024 Polaris Ranger Crew XP 1000 Northstar Premium 4x4
2019 Polaris Ranger Crew XP 1000 EPS 4x4
2019 Polaris Ranger Crew XP 1000 EPS Back Country LE 4x4
2019-2024 Polaris Ranger XP 1000 EPS Premium 4x4
2020-2024 Polaris Ranger Crew XP 1000 Northstar Ultimate 4x4
2019-2022 Polaris Ranger Crew XP 1000 EPS High Lifter Ed. 4x4
2019-2020 Polaris Ranger Crew XP 1000 EPS HVAC Northstar Edition 4x4
2019 Polaris Ranger XP 1000 EPS 4x4
2019 Polaris Ranger XP 1000 EPS Back Country LE 4x4
2021-2022 Polaris Ranger XP 1000 Waterfowl Ed.
2021-2022 Polaris Ranger Crew XP 1000 Waterfowl Ed.
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
