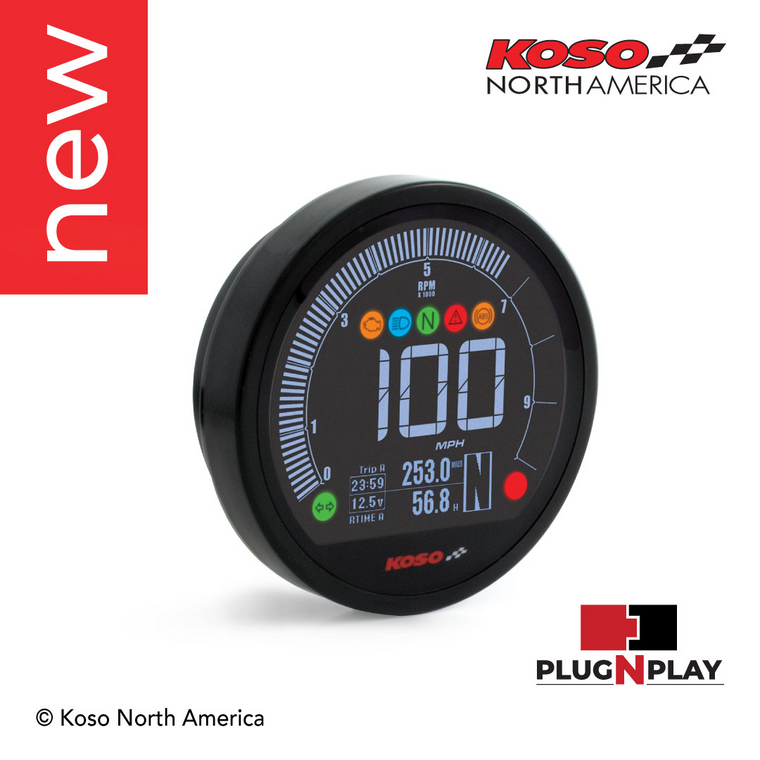

Koso DL-04HD BA077410 multifunction meter Gauge kit 14-23 Sportster 11-22 Softail 12-17 Dyna
Tired of the analog look? Change for something new and modern with our new version of the DL-04 plug and play gauge for Harley-Davidson®! Its classic round shape and high-tech negative LCD screen feature a variety of functions such as speed, odometer, tripmeter, hour meter, as well as 6 indicator lights. This gauge will give riders with a Harley-Davidson® all the information they need while giving an innovative look to their motorcycle.
*Fits models with bar mounted gauge
Specifications
(R= Range U=Unit)
- Speedometer
R: 0 ~ 225 MPH (0 ~ 360 km/h)
U: 1 MPH or km/h - Odometer
R: 0 ~ 999,999 miles (km) U: 1 mile (km) - Tripmeter A/B
R: 0 ~ 9,999.9 miles (km)
U: 0.1 mile (km) - Tachometer
R: 0 ~ 10,000 RPM - Shift light warning
R: 2,000 ~ 10,000 RPM
U: 100 RPM Warning light on ≥ value - Tire circumference
R: 50 ~ 210 % | U: 1 % - Engine temperature meter
R: -40 ~ 419 °F (-40 ~ 215 °C)
U: 1 °F or °C (alternative)
- Backlight brightness
R: 1 – 5 (darkest) ~ 5 – 5 (brightest - Overspeed warning
R: 0 ~ 225 MPH (0 ~ 360 km/h) - Fuel level
R: 6 levels | U: 1 level = 16.67% - Fuel tank volume
R: OFF / 1.0 ~ 9.9 US gallons - Clock
R: 12 H or 24 H format - Gear indicator
R: Off, N, 1, 2, 3, 4, 5, 6 - Indicator lights
Check engine / ABS / RPM shift light / Security indicator / Cruise control / Low voltage warning - Volt meter
R: DC 8.0 ~ 18.0 V | U: DC 0.1 V
