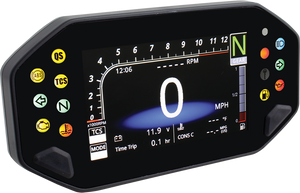

The RX-3 TFT multifunction meter is the newest addition to our RX series of gauges. It features a modern TFT screen to display your information with the day and night brightness adjustability and also has 5 differents colors to choose from.
Compact, lightweight and easy to operate, this modern meter offers a clean and simple design. This universal gauge can be used for any application and also features a plug and play connector available for the Honda Grom® and the Honda Monkey® (to be purchased separately).
Specifications
(R= Range U=Unit)
- Speedometer
R: 0 ~ 225 MPH (0 ~ 360 km/h)
U: 1 MPH or km/h (alternative) - Odometer
R: 0 ~ 99,999 miles (km) | U: 1 mile (km) - Tripmeter A/B
R: 0 ~ 9,999.9 miles (km) | U: 0.1 mile (km) - Oil maintenace
R: 300 ~ 10,000 miles
(500 ~ 16,000km), OFF
U: 100 miles (km) - Speeding warning light
R: 20 ~ 225 MPH (30 ~ 360 km/h)
U: 1 MPH(km) - Top speed record
R: 0 ~ 225 MPH (0 ~ 360 km/h) - Tire circumference
R: 300 ~ 2,500 mm | U: 1 mm
Sensitive point: 1 ~ 40 - Gear indicator (learning)
R: -, N, 1 ~ the highest gear
(the highest gear based on the gear learning)
- Tachometer
R: 0 ~ 15,000 RPM - RPM shiftâlight
R: 1,000 ~ 15,000 RPM | U: 100 RPM
display light: steady or fast flash - Max. RPM
R: 0 ~ 15,000 - RPM input signal number setting
R: 0.5, 1 ~ 24 - RPM input pulse
R: Low-Act, High-Ac - Thermometer
R: 32.0 ~ 482.0 ËF (0 ~ 250 ËC)
U: 0.1 °C (°F) - Over Temperature warning
R: 140 ~ 482°F (60 ~ 250°C) | U: 1°F (°C) - A/F ratio meter
R: 12.1 ~ 17.5 | U: 0.1 - Fuel meter
R: 6 levels | U: 1 level = 16.6 %
- Fuel resistance
R: OFF, 100 Ω, 250 Ω, 270 Ω, 510 Ω,
1200 Ω, SW, learning mode, OFF - Low fuel warning
R: 0 ~ 3/6 | U: 1 - Clock R: 24 H / 12 H format
- Voltmeter
R: DC 8.0 ~ 18.0 V | U: DC 0.1 V - Low voltage warning
R: DC 8.0 ~ 13.0 V | U: 0.1 - High voltage warning
R: DC 13.1 ~ 18.0 V | U: 0.1 - Target speed
D: 20 ~ 225 MPH (30 ~ 360 km/h)
R: 5 MPH (km/h) - Target distance
D: 1/32 ~ 30/32 mile (50 ~ 1,500 m)
U: 1/32 mile (50 m) - Top speed
R: Speed : 0 ~ 360 km/h (0 ~ 225 MPH)
Distance : 0 ~ 999 m (0~3,280 feet)
RPM : 0 ~ 15,000
RPM Time : 0 ~ 9 : 59”99
- Background display
R: Auto (switch according to the ambient
light: Day mode / Night mode.) - Backlight brightness (Day)
R: 3/5~ 5/5(Brightest) | U: 1/5 - Backlight brightness (Night)
R: 1/5(Darkest) ~ 5/5(Brightest) | U: 1/5 - Backlight colors
R: white, red, orange, green, blue - Indicator lights
R: Neutral / High beam / Turn signals / Check engine
Oil level / ABS / Warning / RPM shift light - Effective temperature range
R: 14 ~ 140 °F (â10 ~ 60 °C) - Effective voltage DC 12 V
- Specification
JIS D 0203 (S2) - Meter Size (W x L x H)
140.9 x 90.9 x 45.3 mm - Meter Weight +/- 188 g
