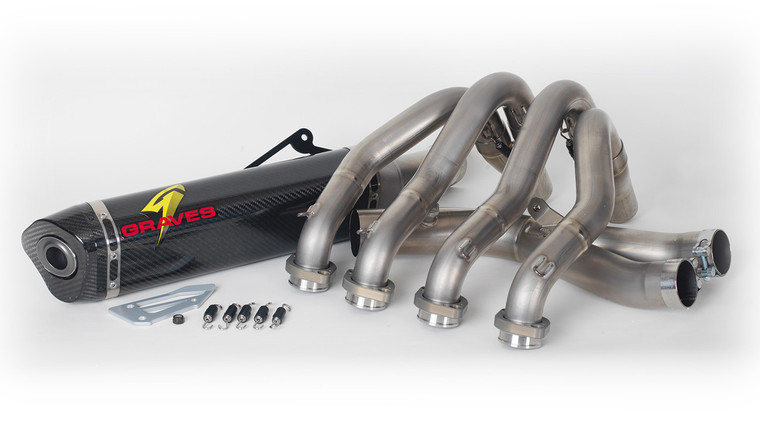

GRAVES MOTORSPORTS EXY-17FZ10-FTC
CARBON FIBER MUFFLER
TITANIUM HEADER & MID PIPE
YAMAHA FZ-10 FZ10 MT10 MT-10
17 2017 18 2018 19 2019 2020 20 21 2021 22 2022 23 2023
Graves Motorsports 2017 Yamaha FZ10 Titanium Exhaust System with carbon fiber silencer. GMS Exhaust systems are designed for the elite rider seeking top of the line performance, fit, finish and value. This FZ10 exhaust system was developed using the same technology that has powered Monster Energy Graves Yamaha riders to 7 straight consecutive Moto America / AMA Superbike championships along with numerous 600cc titles. This product is intended for closed course competition use only. Use of this product for any other purpose is strictly prohibited.
We use the same 1.00 MM thick wall high heat grade Titanium tubing used on our Superbikes. This material is designed special for maximum durability and oxidation resistance up to 800*Celsius / 1472*Fahrenheit. It is designed to live at almost twice the temperature of normal Grade2 Titanium. The tubes are precision bent and cut with the latest equipment available. The tubing is then welded in fixtures designed so that repeatability is second to none. It comes with a single Lambda receiver bung for on track data logging, dyno tuning or the FTEcu Graves mapped Active Tune. The spring tabs are made from 4MM thick Titanium wire for long life.
The silencer is one piece with the tail pipe welded to the deep draw tapered Titanium entrance cap and attaches to the collector with a 60.5 MM machined Titanium joint for a perfect fit every time. The Collector attaches to the stock mount under the frame with a Titanium tab that has an 8MM machine Titanium nut welded to the tab. The silencer is hung with a strapless Aluminum bracket this is powder coated black and riveted on the silencer. The silencer sleeve is made of Carbon fiber that attaches to the titanium end caps with stainless aircraft grade rivets and Titanium silencer bands. The inter core tube is made of stainless that slips over the entrance and into the exit cap that has a 60* slash cut tube covered with a Carbon Fiber beauty cover.
This system performs like our superbike pipe and shows like jewelry.
- Chuck Graves
Features:
- New Diamond Shaped Silencer Design (Carbon Fiber Cans with Carbon End Cap) designed to match the FZ10's "naked line"
- 370mm silencer is length tuned for best overall performance and smooth power delivery curve
- Silencer mounts directly to OEM rearset bracket using a stealth strapless mount built into the setup.
- Constructed from Aerospace grade hi heat Titanium alloys
- 1 Active Tuner Style Lambda sensors comes standard (OEM dual sensor mounts up front are eliminated for a smoother flowing exhaust. When using any Graves performance system, the Flash Tune products are recommended to enhance the bikes performance everywhere. The most effective tune on this setup does not utilize the stock lambdas at all.
- Advanced welding process showcases laser perfection welds
- Flanges are made from 7075 hard anodized aluminum. Built to last!
- 13.8lbs lighter than stock
Stock Exhaust System Weight = 24.0 lbs. : Graves Full FZ10 Exhaust Weight = 10.2 lbs. (13.8lb. savings)
- Stock sound 80 DBA @ idle 91 @ 5000
- Graves Cat Elim 86 DBA @ idle 98 @ 5000 (with included sound insert - can be removed)
- Stock Cat and Silencer 17.4 lbs
- Graves Cat Elim 6.0 lbs saves 11.4 lbs
