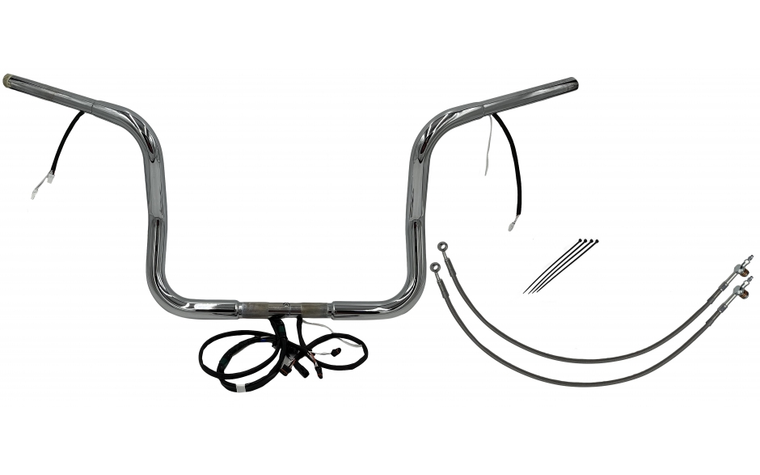

Fat Baggers 902512 EZ Install Wired Handlebars 1-1/4" Round Top 12" Chrome
FBI Round Top Series with 1" Clamp
Features:
Wired for your handlebar controls, including a throttle-by-wire sensor installed
Remove the bars from the box and plug them into your motorcycle
No more need to fight internal wiring with our handlebars
CNC mandrel bent from 1-1/4" Dia. x .120" wall heavy tube
Bolt-together, 2-piece handlebar takes up half the shelf space
Made in the U.S.A.
Does not replace existing lines and cables, but extends them.
Accepts OEM heated grips.
Heated Grip Extension sold separately.
All '21-'23 kits will include black brake lines and black clutch extensions.
Items included in this kit:
EZ Install Wired Handlebars 1-1/4" Round Top 12" Chrome
These handlebars are pre-installed with a twist grip sensor, can bus wire harness for controls, and 1 pre-installed rope to accommodate heated grips.
Chrome hydraulic clutch extension
Chrome brake line extension
Zip ties
Fitment:
FOR 16-20 FLHT, FLHTC, FLHTCU, FLHTK, FLHX & FL TRIKE W/ABS & NON-ABS
Specs:
Width: 36"
Center Width: 15 1/2"
Pullback: 9"
1” Clamp
Part Notices:
Heated grip extension sold separately
Our handlebar kits do not replace existing lines and cables, we extend them.
Black handlebars come with black lines/cable extensions; Chrome handlebars come with braided lines/cables extensions. Exception: ALL 2021/2022 Fitments will include black brake lines and black clutch extensions.
Drag Specialties Part # 0601-6035
U.S. Patent No. 10,946,92
