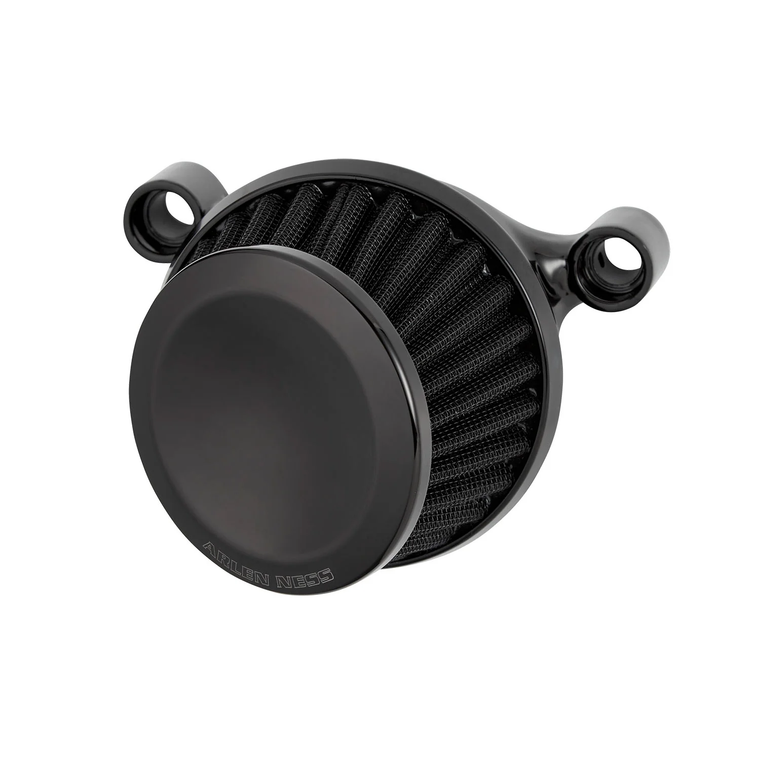

Arlen Ness 600-020 Mini 22 Air Cleaner, Black 17-2023 M8 Models

Description

The Mini 22 Intake is a compact performance air cleaner that features a 4.5" tapered all-black filter design with an angled billet top for optimum leg clearance

22° Angled Performance Filter design
Patented hidden breather technology
Utilizes our high flow velocity backing plate, used in both Monster Sucker & Velocity series air cleaners
High performance black pre-oiled air filter designed for both form & function
Increased Horsepower, torque & mileage
Excellent Leg Room
M8 applications include servo cover

California Air Resource Board: Executive Order D-639-12_R-01

California Prop 65: Learn More

Aluminum One-Piece Backing Plate:

Made from aluminum
Our patented hidden breather technology is o-ringed at the heads and exist out the mouth of the injector/carb to provide efficient engine breathing, eliminating the need for any external hoses or hardware for a virtually closed loop system
Smooth and sculpted backing plate shape wraps around the throttle body for excellent leg room
Milwaukee-Eight™ (M8) engine applications include a formed throttle servo cover that is finished in black powdercoat
Backing plate is finished in gloss black powdercoat

High Performance Pre-Oiled Air Filter:

High performance air filter made from several layers of all-black surgical grade cotton
Features a 22 degree angled design
Integrated billet filter top & bottom
Mini 22 performance filters are washable / re-usable

Compact Performance Design :

Designed to enhance ergonomics, compact intake results in increased legroom
22° angled filter helps bring in more at higher speeds
Hidden air filter clamping area for no exposed clamps resulting in a clean look

Fitment

99-17 TWIN CAM (EXCEPT: FBW)

2001-2017 Twin Cam Delphi EFI (Fuel Injected)
1999-2006 Twin Cam CV Carb
*NOTE: Will not fit Fly-By-Wire Models: 08-17 FLT Touring / 16-17 Softail / 16-17 Dyna FXDLS & 99-01 F.I. FLT

08-16 TOURING / 16-17 SOFTAIL (FBW)

2008-2016 FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR / H-D FL Trike
2016-2017 Softails
2016-2017 Dyna FXDLS
2014-2015 FLSTNSE / 13-14 FXSBSE / 11-12 FLSTSE
*NOTE: Twin Cam models equipped w/ FBW (Fly-by-Wire or Throttle-by-Wire)

91-UP XL SPORTSTER

1991-up Sportster 883 / 1200 with CV Carb or Delphi EFI

17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)

2017-up FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR
2018-up Softail Models

22-UP NIGHTSTER SPORTSTER

2022-up RH975 models
