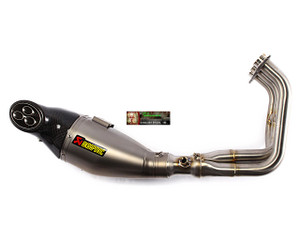

AKRAPOVIC S-Y9R2-AFC COMPLETE FULL EXHAUST SYSTEM
RACING LINE STAINLESS HEADER / COLLECTOR & MID / LINK PIPE
CARBON HEX MUFFLER W CF END CAP
YAMAHA FZ-09 FZ09 FZ900 FJ-09 FJ09 FJ900 900 FZ FJ mt-09 mt09
14 15 16 2014 2015 2016 17 2017 18 2018 19 2019
3:1 Full Exhaust SystemAkrapovic - Racing Line (Carbon) Yamaha FZ-09 i.e -
Ref. S-Y9R2-AFC
Yamaha FZ9 - MT09
S-Y9R2-AFC Racing Line (Carbon)
- Power: +5.1 kW at 9850 rpm
- Weight: -3.8kg
- Torque: +6.4Nm at 5150 rpm
The Racing Line represents a full step in the exhaust system tuning process and offers a great balance between price and optimum performance. Racing performance exhaust systems are designed for riders that demand maximum performance from their motorcycle. The systems are lighter compared to the stock exhaust system and feature exceptional production quality and increased engine performance combined with pure racing sound output. A combination of racing materials like carbon fibre for the muffler outer sleeve give these exhaust systems a racing touch.
Technical Data
It’s not just about peak power-Akrapovi? exhaust systems deliver increased performance throughout the entire rpm range. Increased power and torque result in a much smoother ride. All Akrapovi? exhaust system measurements are made on our computer-controlled flowbenches.
| | Unit | Stock | Akrapovi? | Max gain |
|---|
maximum
power | kW | 82.7 at 9900 rpm | 87.7 at 9850 rpm | + 5.1 at 9850 rpm | | HP (m) | 112.4 at 9900 rpm | 119.3 at 9850 rpm | + 6.9 at 9850 rpm | | HP (i) | 110.9 at 9900 rpm | 117.7 at 9850 rpm | + 6.8 at 9850 rpm | maximum
torque | Nm | 88.3 at 8400 rpm | 91.9 at 8250 rpm | + 6.4 at 5150 rpm | | lb-ft | 65.1 at 8400 rpm | 67.8 at 8250 rpm | + 4.7 at 5150 rpm | | weight | kg | 8.4 | 4.6 | - 3.8 | | lb | 18.5 | 10.1 | - 8.4 | static
noise level | dB | 94 at 5000 rpm | 102.5 at 5000 rpm | 8.5 | installation
time | min | | 60 | | measured with: Yamaha MT-09 2014 | |
