S&S 330-0726 475 CAM CAMSHAFT & DYNOJET PV-3 TUNER KIT FL 17-20 GEAR DRIVE

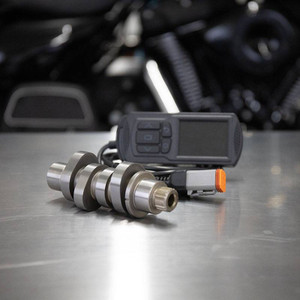

S&S 475 Performance Cam Kit with PV-3 Tuner for Harley
S&S Cycle has long been the leader in performance cam development and is keeping that streak going with the 50-state legal version of their popular 475 cam for M8 touring machines. This bolt-in cam produces over 100 horsepower and 109 lb-ft of torque. Combining the cam with the Powervision PV3 tuner allows for a simple set up without having to put the bike on a Dyno. To make it even more interesting, S&S has managed to make the cam warranty friendly, CARB legal, and available in chain or gear drive.
Features:
- Bolt-in, legal performance
- No need for expensive dyno tuning
- Display vehicle data channels in real-time
- Weather-resistant for use in all conditions
- High contrast display, viewable in direct sunlight
- Exempt from emissions tampering regulations under CARB EO# D-355-32
475 Cam Info:
- Front Intake open/close 6.2°/27.2°
- Front Exhaust open/close 55.5°/28.5°
- Rear Intake open/close 2.2°/31.2°
- Rear Exhaust open/close 52.5°/20.2°
- Front Intake duration 213.5°
- Rear Intake duration 213.5°
- Front Exhaust duration 263.9°
- Rear Exhaust duration 252.5°
- Intake Lift .475"
- Exhaust Lift .475"
- Front Intake Lobe Center Line 100.5°
- Front Exhaust Lobe Center Line 103.5°
- Rear Intake Lobe Center Line 104.5°
- Rear Exhaust Lobe Center Line 106.0°
- Front Intake Lift at TDC .107"
- Front Exhaust Lift at TDC .208"
- Rear Intake Lift at TDC .093"
- Rear Exhaust Lift at TDC .170"
