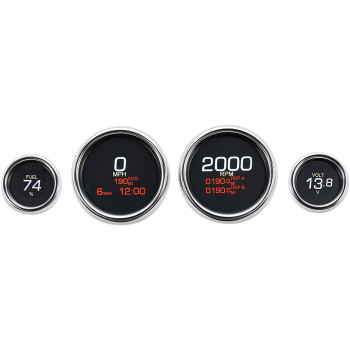

Open Box Dakota Digital MLX-8404 4 Piece Chrome Gauge Kit Touring FL 04-13

• Four-gauge systems include a 3 3/8 in. speedometer and tach (MPH or km/H selectable) with odometer and dual trip meters, plus two fully programmable 2 1/16 in. gauges.
• Display your choice of oil pressure, oil temperature (sensor included), voltage, and fuel level readings.
• Additional system features include clock, gear position, 0-60 time, 1/4 mile time, 1/4 mile speed, 0-60 time plus and high speed and PRM recall.
• Main gauges feature cruise engaged, security, check engine and ABS indicators.
• The message centers below the speed and tach offer two lines of information to keep the rider informed.
• Gauge displays automatically dim for comfortable night time riding and brighten to a high contrast mode for excellent visibility, even in direct sunlight.
• The two small gauges can be programmed by the rider for their ideal layout.
• Riders can choose from 31 illumination colors; independently select colors for main reading, message center information and gauge labels, or choose from 12 preset themes!
• MBM expansion modules available mobile app for both Android and Apple iOS devices-access the setup and customization preferences with your smart phone or tablet.

FEATURES

SPEED - Programmable speed calibration, performance menu, two trip meters, odometer, count down service miles, hours running, miles to empty, security and check engine indicators

TACHOMETER - Programmable tach, clock, gear position, cruise control indicator, and high RPM recall

OIL PRESSURE - Programmable warning point, uses stock sensor or Dakota digital sensor for higher pressure

OIL TEMPERATURE - Programmable warning point , complete with new sensor

VOLTS - Programmable warning poing

FUEL LEVEL - Low fuel warning, uses factory sensor

AIR TEMPERATURE - Uses factory sensor

USER SELECTABLE READINGS IN EACH SMALL GAUGE - pick what you want displayed in each gauge, included MBM readings

NOTE: This gauge has an odometer preseet option that is only available for the first 100 miles (160km) of operation. See "preset odometer" on page 14 for instruction.

(2) Chrome large gauges W/black face

(2) Chrome small gauges W/black face

(1) Sensor connect wire harness

(1) Oil temperature sensor wiring harness

(1) Interconnect wiring harness

(1) Black wire W/(1) female spade connector

(1) Oil temperature sensor

(9) 4mm-.70 Hex nuts

(14) Black cable ties

Instructions
