KOSO NORTH AMERICA BA080050 D2 Gauge Kit - LCD HD Touring/Trike
Manufacturer Part Number: BA080050
Drag Part Number: 2210-0697
Complete D2 Gauge Kit - LCD - HD Touring/Trike

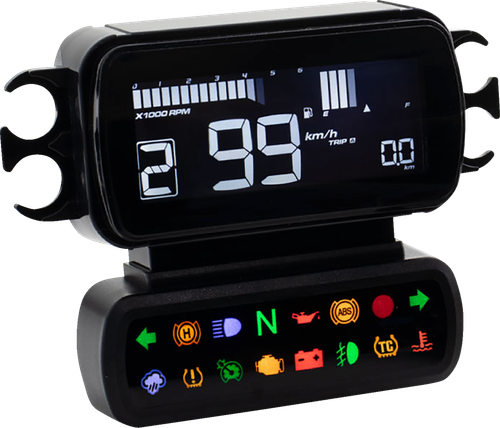

- High quality plug-and-play meter equipped with eight-color changeable LCD display
- Designed to mount in the cutout of the top handlebar clamp for a sleek look (handlebar riser kit w/ gauge cutout or gauge relocation kit may be required depending on application)
- Features vital readings such as engine temperature, battery voltage, tire pressure, gear indicator and a complete system of indicator lights to monitor bike’s vital signs
- Plugs directly into the stock harness and works directly with CANBUS system
- Includes fuel level, and oil temp meter gauges with adapter harness
- Display range: 0-124 mph
- Effective temperature range: -4° F-185° F (-20° C-85° C)
- 12VDC battery voltage
- D2 Gauge Measures: 3-7/16” L x 1-1/16” W x 2-5/8” H
- Add-on kit measures: 2-3/4" Outside Diameter x 1-3/4" Depth
- To access settings on CVO models, must turn on the run/stop switch so that the bike will not turn off. Then make adjustments to the settings on the gauge.
