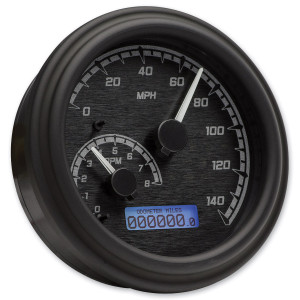

DAKOTA DIGITAL MVX-2004-KG-K Black/Gray MVX-2004 Series Analog Gauge System with Black Bezel

$418.55
(No reviews yet) Write a Review
Shipping:
Calculated at Checkout

DAKOTA DIGITAL MVX-2004-KG-K Black/Gray MVX-2004 Series Analog Gauge System with Black Bezel

Harley 4-1/2" Analog Replacement w/ Direct ECM Plug-In, 2004-2013 Models w/ Tank Mounted Gauge


From Dakota Digital

Harley 4-1/2" Analog Replacement w/ Direct ECM Plug-In, 2004-2013 Models w/ Tank Mounted Gauge

The all new MVX-2004 electronic instrumentation system offers a 140 MPH Speedometer, Tachometer with an adjustable shift point, odometer with dual resettable trip meters and a full complement of indicators to provide a complete information system.

Designed to fit single 5" gauge tank mount applications:
2004-2013 Road King / 2004-2010 Softail & 2007-2009 CVO Convertibles / 2004-2007 Deuce / 2004-2011 Dyna Models




  • 31 individually user-selectable colors for Pointer, Backlight and LCD Message Center.
  • 2 Different face options available:
    • Black w/ Gray Accents
    • White w/ Gray Accents
  • Chrome or Black bezel option
  • 140 MPH speedometer.
  • Tachometer with adjustable shift point, can also display in digital numeric readout.
  • Odometer with two resettable trip odometers.
  • Resettable Miles to Service with warning (user settable countdown) and hourmeter.
  • Clock (12 hour format)
  • Voltage readout with low voltage alert.
  • Cylinder Head Temp (requires factory sender equipped on some bikes).
  • Oil Pressure sender sold separately, (SEN-1039)
  • Oil Temperature sender sold separately, (SEN-1043 or SEN-1044) eliminates cylinder head temp if used
  • 7 Speed Gear Position Indicator compatible with 3- 7 speed transmissions.
  • Various indicators can also be displayed such as Turn Signal, High Beam, Neutral, Low Oil Pressure, Low Voltage and Security Indicators
  • ABS Indicator
  • Cruise on and Cruise engaged indication
  • Security Indicator
  • Automatic turn signal cancelling compatible.
  • "Wait to start" / Check Engine light.
  • Several performance calculations include: 0- 60 time, high speed & high RPM recall, 1/4 mile time and speed.

Additional gauges that can be added to the MVX Series by use of the Dakota Digital MBM expansion modules are:

  • Air Suspension Pressure (single or dual readings)
    • MBM-19 - Includes 1 sender. Additional sender SEN-1901 sold seperate.
  • Boost
    • MBM-09 - Sender included.
  • GPS-Powered Compass
    • MBM-17
      • Have a Police model or bike without air temp? Add the Ambient Air Temperature sender SEN-1701 (sold separately) to the MBM-17

* Limited Two Year Warranty!
** Softails may require an oil temp adapter kit from Harley-Davidson (sold seperately)
**** Does not fit 2010 CVO Convertible

Case diameter measures 4-1/4", bezel diameter of 4-5/8"

Dakota Digital Instrument systems are shipped from the factory with "0" miles on the odometer. Odometer mileage is now user settable one time and must be done before the odometer reaches 100 miles. This can be done at the factory for a charge of $20 if unable to be set before 100 miles, or if set incorrectly. Please contact Dakota Digital to arrange this service.





2010-2011 Harley-Davidson Wide Glide EFI FXDWGI - -
2010 Harley-Davidson Fat Boy Lo FLSTFB - -
2009-2013 Harley-Davidson Road King EFI FLHR - -
2008-2011 Harley-Davidson Fat Bob FXDF - -
2008-2010 Harley-Davidson Softail Cross Bones FLSTSB - -
2008-2010 Harley-Davidson Softail Rocker C FXCWC - -
2008-2009 Harley-Davidson Softail Rocker FXCW - -
2008 Harley-Davidson Wide Glide EFI FXDWGI - -
2007-2010 Harley-Davidson Softail Custom EFI FXSTC - -
2007-2010 Harley-Davidson Softail Fat Boy EFI FLSTFI - -
2007-2010 Harley-Davidson Softail Heritage Classic EFI FLSTCI - -
2007-2010 Harley-Davidson Softail Deluxe EFI FLSTNI - -
2007-2009 Harley-Davidson Softail Night Train EFI FXSTBI - -
2007-2008 Harley-Davidson Road King EFI FLHR - -
2007 Harley-Davidson Road King Custom EFI FLHRS - -
2007 Harley-Davidson Wide Glide EFI FXDWGI - -
2007 Harley-Davidson Softail Deuce EFI FXSTDI - -
2007 Harley-Davidson Softail Standard EFI FXSTI - -
2006 Harley-Davidson Softail Heritage EFI FLSTI - -
2006 Harley-Davidson Softail Night Train EFI FXSTBI - -
2006 Harley-Davidson Softail Standard FXST - -
2006 Harley-Davidson Softail Springer EFI FXSTSI - -
2006 Harley-Davidson Softail Springer FXSTS - -
2006 Harley-Davidson Softail Night Train FXSTB - -
2006 Harley-Davidson Wide Glide EFI FXDWGI - -
2006 Harley-Davidson Softail Standard EFI FXSTI - -
2006 Harley-Davidson Softail Heritage FLST - -
2005-2007 Harley-Davidson Softail Springer Classic EFI FLSTSCI - -
2005-2006 Harley-Davidson Softail Deluxe FLSTN - -
2005-2006 Harley-Davidson Softail Springer Classic FLSTSC - -
2005-2006 Harley-Davidson Softail Deluxe EFI FLSTNI - -
2005 Harley-Davidson 15th Anniversary Fat Boy FLSTF - -
2004-2006 Harley-Davidson Road King Custom FLHRS - -
2004-2006 Harley-Davidson Road King Custom EFI FLHRS - -
2004-2006 Harley-Davidson Softail Deuce FXSTD - -
2004-2006 Harley-Davidson Softail Deuce EFI FXSTDI - -
2004-2006 Harley-Davidson Road King Classic EFI FLHRC - -
2004-2006 Harley-Davidson Softail Fat Boy EFI FLSTFI - -
2004-2006 Harley-Davidson Road King FLHR - -
2004-2006 Harley-Davidson Softail Heritage Classic EFI FLSTCI - -
2004-2006 Harley-Davidson Softail Heritage Classic FLSTC - -
2004-2006 Harley-Davidson Softail Fat Boy FLSTF - -
2004-2005 Harley-Davidson Softail Night Train EFI FXSTBI - -
2004-2005 Harley-Davidson Softail Springer FXSTS - -
2004-2005 Harley-Davidson Wide Glide FXDWG - -
2004-2005 Harley-Davidson Softail Night Train FXSTB - -
2004-2005 Harley-Davidson Softail Springer EFI FXSTSI - -
2004-2005 Harley-Davidson Softail Standard FXST - -
2004-2005 Harley-Davidson Softail Standard EFI FXSTI - -
2004-2005 Harley-Davidson Wide Glide EFI FXDWGI - -
