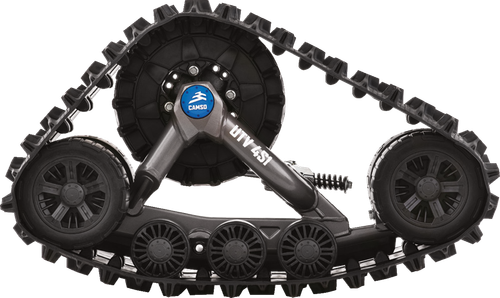

Camso UTV 4S1 Track System - Ranger 700/800 [6522050515]

MSRP: $6,599.00

$6,164.22

(You save $434.78 )

(No reviews yet) Write a Review

Manufacturer Part Number:

6522050515

Availability:

Backordered - Available to order. We will contact you with an estimated ship date after your order is placed.

Parts Unlimited Part Number:

45100894

Parts API Product ID:

0307420720

Parts Status:

Product Type:

Atv & Utv Track Systems and Parts

Parts Fitment Count:

Description
Warranty Information

Camso UTV 4S1 Track System - Ranger 700/800 [6522050515]

Manufacturer Part Number: 6522050515

Parts Unlimited Part Number: 45100894

Product Type: Atv & Utv Track Systems and Parts

UTV 4S1 Track System - Ranger 700/800

Details

Front Track Length: 98.5"
Riding Style: UTV
Front Height: 25"
Ground Surface: 1,62 m² (2520 in²)
Model: UTV 4S1
Rear Track Width: 14"
Rear Track Length: 116.7"
Lug Height: 1.125"
Units: Each
Tooth Count: 15-18
Product Name: Track System
Features: For A-Arm Independent Suspension
Ground Clearance: +5"
Front Track Width: 12.5"
Rear Height: 24.7"
Anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier
Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible
Mid-roller suspension feature minimizes vibration and increases ride comfort
Sturdier and more adjustable tensioner prevents critical part misalignment
Hub and bearing features a bigger oil cap for easier maintenance
Easier installation and improved vehicle adaptability
Solid Steel Frame
Open lightweight steel frame design easily sheds snow, mud and debris and pivots in tandem at each end
Bearing Housing
Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability
Stainless sleeves for greater reliability
Puncture-Proof Tires
High-density tire with adjusted shape reduces friction and wear, maximizes shock absorption to improve ride quality and delivers trouble-free performance
Tandem Stabilizer and Wheel Shaft
Tandem stabilizer features rubber-mounted shafts that eliminate the need for greasing and absorbs shocks for a smoother, more stable ride
Wheel and Seal
Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations
Flex Track Design
Front-mounted tracks with flexible sides and slight curve toward the inside
Not recommended for use over 25 mph.
Minor modification and light interference are possible on any model.
