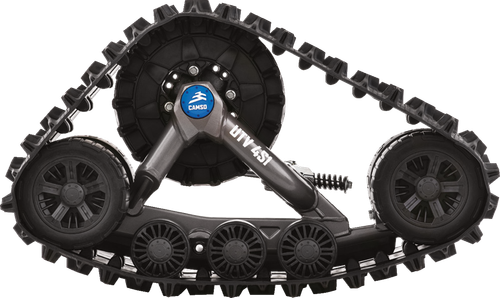

Camso UTV 4S1 Track System - Prowler 650/700 [6522016510]

Camso UTV 4S1 Track System - Prowler 650/700 [6522016510]

Manufacturer Part Number: 6522016510

Parts Unlimited Part Number: 45100865

Product Type: Atv & Utv Track Systems and Parts

UTV 4S1 Track System - Prowler 650/700

Details

• Front Track Width: 12.5"
• Rear Height: 24.7"
• Front Track Length: 98.5"
• Riding Style: UTV
• Features: For A-Arm Independent Suspension
• Ground Clearance: +5"
• Units: Each
• Product Name: Track System
• Rear Track Length: 116.7"
• Tooth Count: 15-18
• Lug Height: 1.125"
• Front Height: 25"
• Ground Surface: 1,62 m² (2520 in²)
• Model: UTV 4S1
• Rear Track Width: 14"
• Anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier
• Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible
• Mid-roller suspension feature minimizes vibration and increases ride comfort
• Sturdier and more adjustable tensioner prevents critical part misalignment
• Hub and bearing features a bigger oil cap for easier maintenance
• Easier installation and improved vehicle adaptability
• Solid Steel Frame
• Open lightweight steel frame design easily sheds snow, mud and debris and pivots in tandem at each end
• Bearing Housing
• Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability
• Stainless sleeves for greater reliability
• Puncture-Proof Tires
• High-density tire with adjusted shape reduces friction and wear, maximizes shock absorption to improve ride quality and delivers trouble-free performance
• Tandem Stabilizer and Wheel Shaft
• Tandem stabilizer features rubber-mounted shafts that eliminate the need for greasing and absorbs shocks for a smoother, more stable ride
• Wheel and Seal
• Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations
• Flex Track Design
• Front-mounted tracks with flexible sides and slight curve toward the inside
• Not recommended for use over 25 mph.
• Minor modification and light interference are possible on any model.

Verified Fitment

• 2008 Arctic Cat H1 650 Prowler XT
• 2014 Arctic Cat Prowler 700 XT 4x4
• 2011 Arctic Cat Prowler 700 XT 4x4
• 2012 Arctic Cat Prowler 700 XT 4x4
• 2013 Arctic Cat Prowler 700 XT 4x4
• 2008 Arctic Cat Prowler 700 XT 4x4
• 2010 Arctic Cat Prowler 700 XT 4x4
• 2013 Arctic Cat Prowler 700 XT EPS 4x4
• 2014 Arctic Cat Prowler 700 XT EPS 4x4
• 2015 Arctic Cat Prowler 700 XT EPS 4x4
• 2012 Arctic Cat Prowler 700 XT EPS 4x4
• 2011 Arctic Cat Prowler 700 XT EPS 4x4
• 2015 Arctic Cat Prowler 700 XTX 4x4
• 2008 Arctic Cat Prowler 700 XTX 4x4
• 2009 Arctic Cat Prowler 700 XTX 4x4
• 2011 Arctic Cat Prowler 700 XTX LE
• 2014 Arctic Cat Prowler 700 XTX LE
• 2010 Arctic Cat Prowler 700 XTX LE
• 2015 Arctic Cat Prowler 700 XTX LE
• 2013 Arctic Cat Prowler 700 XTX LE
• 2012 Arctic Cat Prowler 700 XTX LE
• 2007 Arctic Cat Prowler XT 650 H1
• 2006 Arctic Cat Prowler XT 650 H1
• 2009 Arctic Cat Prowler XT 650 H1
• 2010 Arctic Cat Prowler XTX 700
• 2011 Arctic Cat Prowler XTX 700
• 2014 Arctic Cat Prowler XTX 700
• 2009 Arctic Cat Prowler XTX 700 H1 EFI
• 2011 Arctic Cat Prowler XTX 700 H1 EFI
• 2010 Arctic Cat Prowler XTX 700 H1 EFI
• 2011 Arctic Cat H1 700 Prowler XT
• 2013 Arctic Cat H1 700 Prowler XT
• 2008 Arctic Cat H1 700 Prowler XT
• 2012 Arctic Cat H1 700 Prowler XT
• 2014 Arctic Cat H1 700 Prowler XT
• 2010 Arctic Cat H1 700 Prowler XT
• 2009 Arctic Cat H1 700 Prowler XT
• 2015 Arctic Cat H1 700 Prowler XT
• 2015 Arctic Cat H1 700 Prowler XT EPS
• 2015 Arctic Cat H1 700 Prowler XTX EFI
• 2013 Arctic Cat H1 700 Prowler XTX EFI
• 2008 Arctic Cat H1 700 Prowler XTX EFI
• 2012 Arctic Cat H1 700 Prowler XTX EFI
• 2014 Arctic Cat H1 700 Prowler XTX EFI
• 2009 Arctic Cat Prowler XT 700
• 2015 Arctic Cat Prowler XT 700
• 2009 Arctic Cat Prowler XTX 700 LE
• 2008 Arctic Cat Prowler XTX 700 LE
• 2012 Arctic Cat Prowler XTX 700i
• 2013 Arctic Cat Prowler XTX 700i
