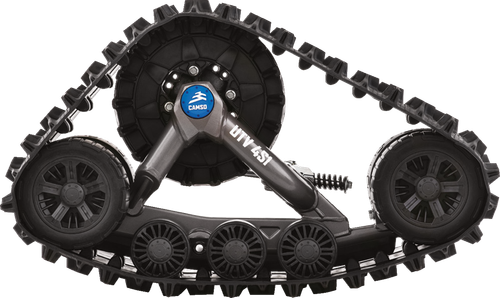

Camso UTV 4S1 Track System - Bob Cat/Case IH/New Holland [6522212200]

Camso UTV 4S1 Track System - Bob Cat/Case IH/New Holland [6522212200]

Manufacturer Part Number: 6522212200

Parts Unlimited Part Number: 45100934

Product Type: Atv & Utv Track Systems and Parts

UTV 4S1 Track System - Bob Cat/Case IH/New Holland

Details

• Product Name: Track System
• Features: For Rigid Axle Suspension
• Front Height: 25"
• Ground Clearance: +5"
• Ground Surface: 1,62 m² (2520 in²)
• Model: UTV 4S1
• Rear Track Width: 14"
• Units: Each
• Front Track Width: 12.5"
• Lug Height: 1.125"
• Rear Height: 24.7"
• Rear Track Length: 116.7"
• Tooth Count: 15-18
• Front Track Length: 98.5"
• Riding Style: UTV
• Anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier
• Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible
• Mid-roller suspension feature minimizes vibration and increases ride comfort
• Sturdier and more adjustable tensioner prevents critical part misalignment
• Hub and bearing features a bigger oil cap for easier maintenance
• Easier installation and improved vehicle adaptability
• Solid Steel Frame
• Open lightweight steel frame design easily sheds snow, mud and debris and pivots in tandem at each end
• Bearing Housing
• Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability
• Stainless sleeves for greater reliability
• Puncture-Proof Tires
• High-density tire with adjusted shape reduces friction and wear, maximizes shock absorption to improve ride quality and delivers trouble-free performance
• Tandem Stabilizer and Wheel Shaft
• Tandem stabilizer features rubber-mounted shafts that eliminate the need for greasing and absorbs shocks for a smoother, more stable ride
• Wheel and Seal
• Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations
• Flex Track Design
• Front-mounted tracks with flexible sides and slight curve toward the inside
• Not recommended for use over 25 mph.
• Minor modification and light interference are possible on any model.

Verified Fitment

• 2015 Case IH Scout XL 2-Passenger
• 2014 Case IH Scout XL 2-Passenger
• 2016 Case IH Scout XL 2-Passenger
• 2013 Case IH Scout XL 2-Passenger
• 2012 Case IH Scout XL 2-Passenger
• 2015 Case IH Scout XL 4-Passenger
• 2012 Case IH Scout XL 4-Passenger
• 2014 Case IH Scout XL 4-Passenger
• 2013 Case IH Scout XL 4-Passenger
• 2016 Case IH Scout XL 4-Passenger
• 2013 Case IH Scout XL Diesel 4-Passenger
• 2016 Case IH Scout XL Diesel 4-Passenger
• 2012 Case IH Scout XL Diesel 4-Passenger
• 2014 Case IH Scout XL Diesel 4-Passenger
• 2015 Case IH Scout XL Diesel 4-Passenger
• 2012 Case IH Scout XL Diesel 2-Passenger
• 2014 Case IH Scout XL Diesel 2-Passenger
• 2016 Case IH Scout XL Diesel 2-Passenger
• 2015 Case IH Scout XL Diesel 2-Passenger
• 2013 Case IH Scout XL Diesel 2-Passenger
• 2013 New Holland Rustler 120 Two Passenger
• 2014 New Holland Rustler 120 Two Passenger
• 2015 New Holland Rustler 120 Two Passenger
• 2016 New Holland Rustler 120 Two Passenger
• 2012 New Holland Rustler 120 Two Passenger
• 2016 New Holland Rustler 125 Four Passenger
• 2014 New Holland Rustler 125 Four Passenger
• 2013 New Holland Rustler 125 Four Passenger
• 2012 New Holland Rustler 125 Four Passenger
• 2015 New Holland Rustler 125 Four Passenger
• 2012 New Holland Rustler 120 Four Passenger
• 2013 New Holland Rustler 120 Four Passenger
• 2015 New Holland Rustler 120 Four Passenger
• 2014 New Holland Rustler 120 Four Passenger
• 2016 New Holland Rustler 120 Four Passenger
• 2016 New Holland Rustler 125 Two Passenger
• 2014 New Holland Rustler 125 Two Passenger
• 2012 New Holland Rustler 125 Two Passenger
• 2015 New Holland Rustler 125 Two Passenger
• 2013 New Holland Rustler 125 Two Passenger
• 2007 Bobcat 2200 S Crew
• 2009 Bobcat 2200 S Crew
• 2008 Bobcat 2200 S Crew
• 2008 Bobcat 2200
• 2009 Bobcat 2200
• 2006 Bobcat 2200
• 2007 Bobcat 2200
