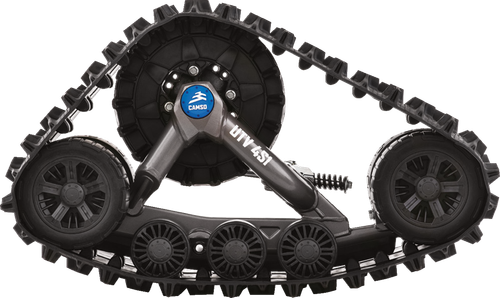

Name: Camso UTV 4S1 Track System - Maverick X3 [6522022222]
Price: 6164.22 USD
Availability: InStock

Description
Warranty Information

Camso UTV 4S1 Track System - Maverick X3 [6522022222]

Manufacturer Part Number: 6522022222

Parts Unlimited Part Number: 45101126

Product Type: Atv & Utv Track Systems and Parts

UTV 4S1 Track System - Maverick X3

Details

Front Track Width: 12.5"
Product Name: Track System
Ground Clearance: +5"
Rear Track Length: 116.7"
Features: For A-Arm Independent Suspension
Front Track Length: 98.5"
Lug Height: 1.125"
Units: Each
Front Height: 25"
Rear Track Width: 14"
Tooth Count: 15-18
Ground Surface: 1,62 m² (2520 in²)
Model: UTV 4S1
Rear Height: 24.7"
Riding Style: UTV
Anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier
Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible
Mid-roller suspension feature minimizes vibration and increases ride comfort
Sturdier and more adjustable tensioner prevents critical part misalignment
Hub and bearing features a bigger oil cap for easier maintenance
Easier installation and improved vehicle adaptability
Solid Steel Frame
Open lightweight steel frame design easily sheds snow, mud and debris and pivots in tandem at each end
Bearing Housing
Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability
Stainless sleeves for greater reliability
Puncture-Proof Tires
High-density tire with adjusted shape reduces friction and wear, maximizes shock absorption to improve ride quality and delivers trouble-free performance
Tandem Stabilizer and Wheel Shaft
Tandem stabilizer features rubber-mounted shafts that eliminate the need for greasing and absorbs shocks for a smoother, more stable ride
Wheel and Seal
Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations
Flex Track Design
Front-mounted tracks with flexible sides and slight curve toward the inside
Not recommended for use over 25 mph.
Minor modification and light interference are possible on any model.
